Janisol Economy 50 steel window door frames

With an installation depth of only 50 mm, the Jansen Economy 50 profile system is suitable for slender, elegant window designs without thermal insulation.

Tested systemised fittings are available for all common opening types.

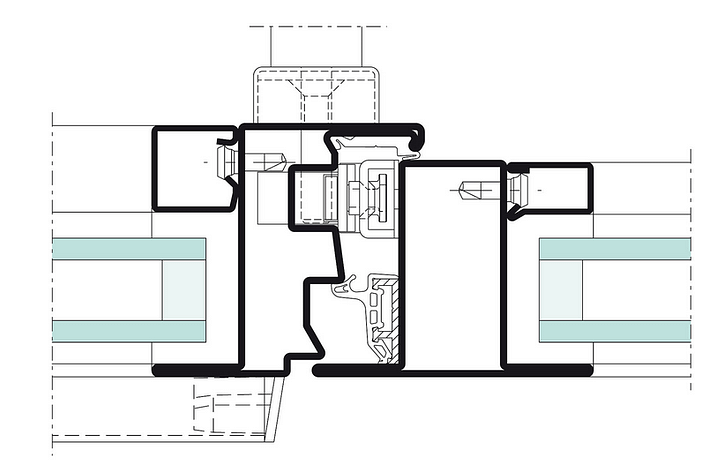

Profile

Features:

Materials / surface finish

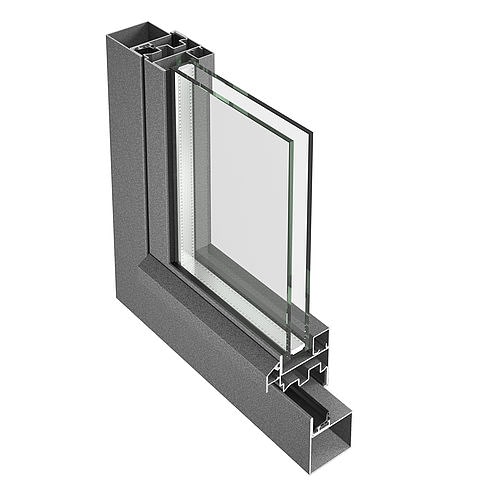

  • Uncoated steel or strip-galvanised steel, suitable for powder coating or stove-enamelling

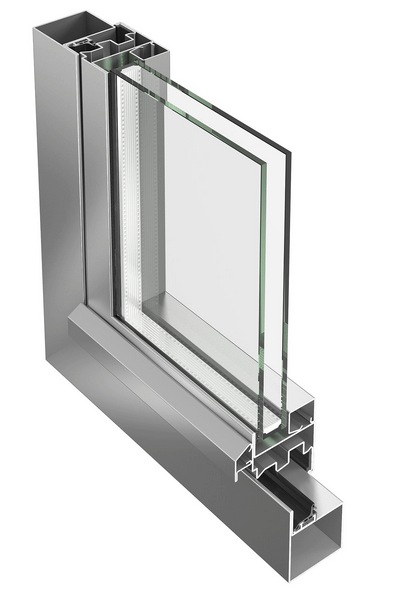

  • Stainless steel 1.4307 and 1.4404 uncoated or polished

Window types / opening options

  • Single and double casement windows, with and without fixed side panels or transom window
  • Side-hung, turn-tilt, bottom-hung, top-hung and double-vent windows
  • Partition walls

Equipment

  • Concealed or surface-mounted fittings
  • Integrated or surface-mounted electric drives

Special technical features

  • Installation depth 50/58.5 mm
  • Special geometries (semi-circular tops, trapezoidal windows etc.)
  • Weight of casement up to 180 kg

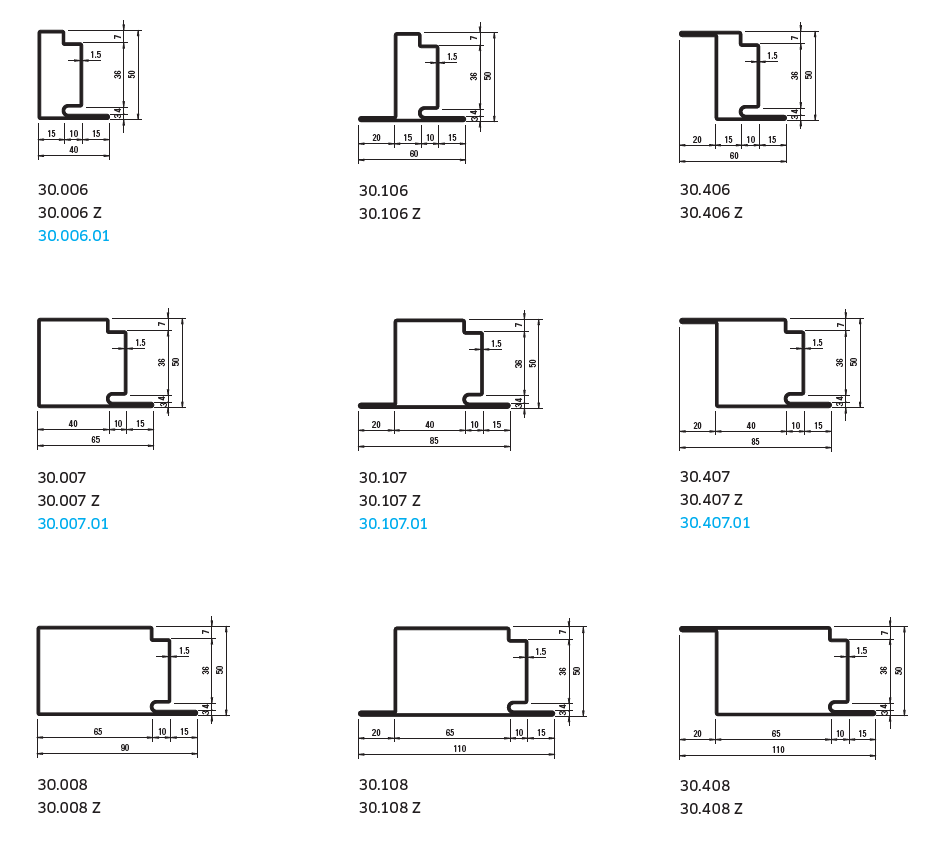

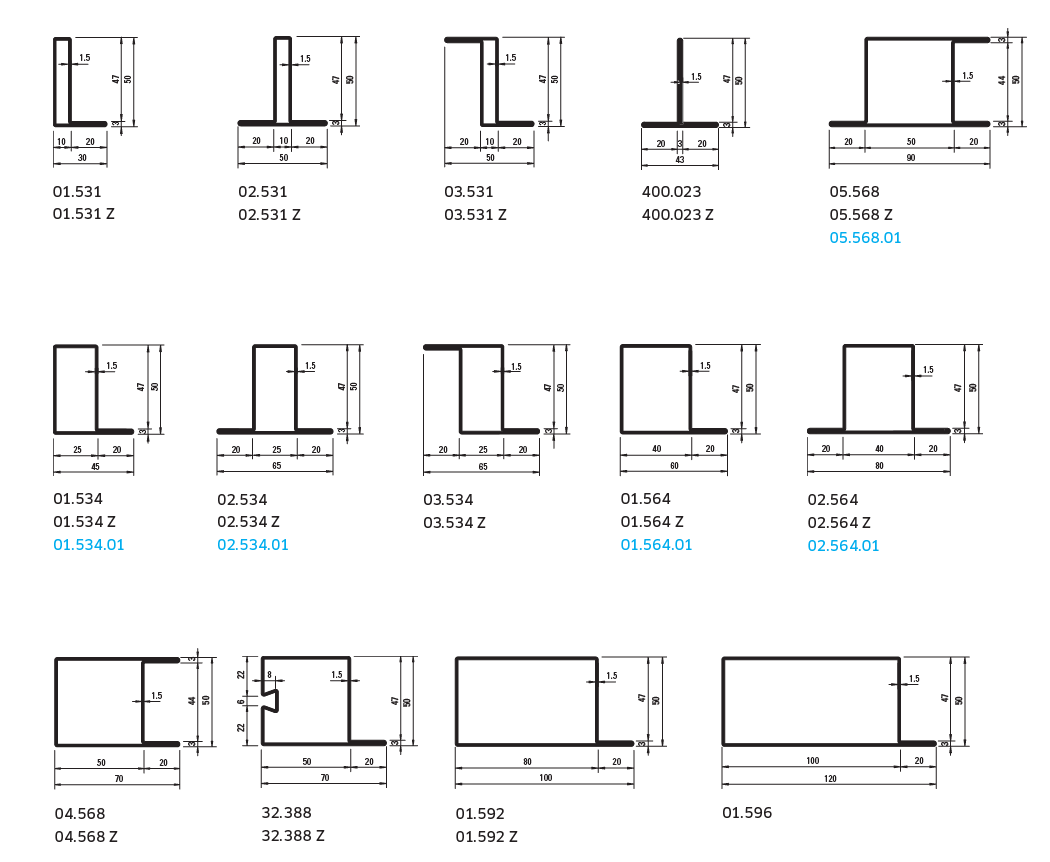

Profile Range

The Gallery
