Jansen Janisol Arte 2.0 Steel framed doors and windows
Janisol arte 2.0 steel framed doors and windows
Slender steel window system for matching the existing style in refurbishments
The second generation of the Janisol Arte window system now offers profiles made from stainless steel and Corten steel as well as a wide range of profiles. The integrated weatherstrip groove simplifies and speeds up fabrication.
A large selection of glazing beads is also available in a variety of different materials. The wide range of opening types is ideally suited for the renovation of old windows as well as for modern residential construction.
With the narrowest profile face widths of only 25 or 40 mm for fixed glazing and a basic depth of 60 mm, intricate yet stable constructions with a large proportion of glass and excellent thermal insulation can be created.
Features:
Window types / opening options
- Side-hung window and window with meeting stile, single and double-vent, inward and outward-opening
- Inward-opening bottom-hung window
- Top-hung and projected top-hung window, outward-opening
- Horizontal pivot window
- Vertical pivot window
- Fixed glazing
Fittings
- Multi-point locking
- Surface-mounted fitting version
- Electric drive
Special technical features
Basic depth of 60 mm
Very narrow face widths:
- Fixed glazing 25 mm
- Window vent 20 mm
- Window meeting stile design 60 mm
- Easy to fabricate
- Window sizes up to 1000 x 2400 mm
- Glass thicknesses of 20 to 47 mm
- Max. weight 150 kg

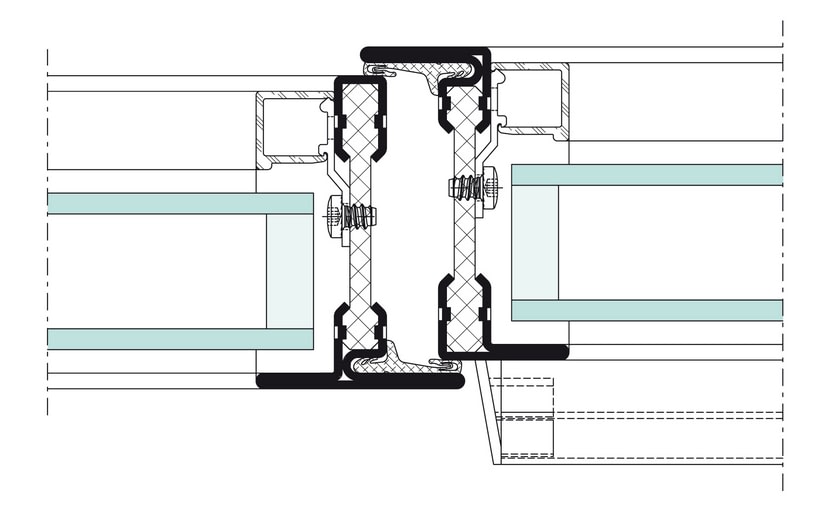

Profile

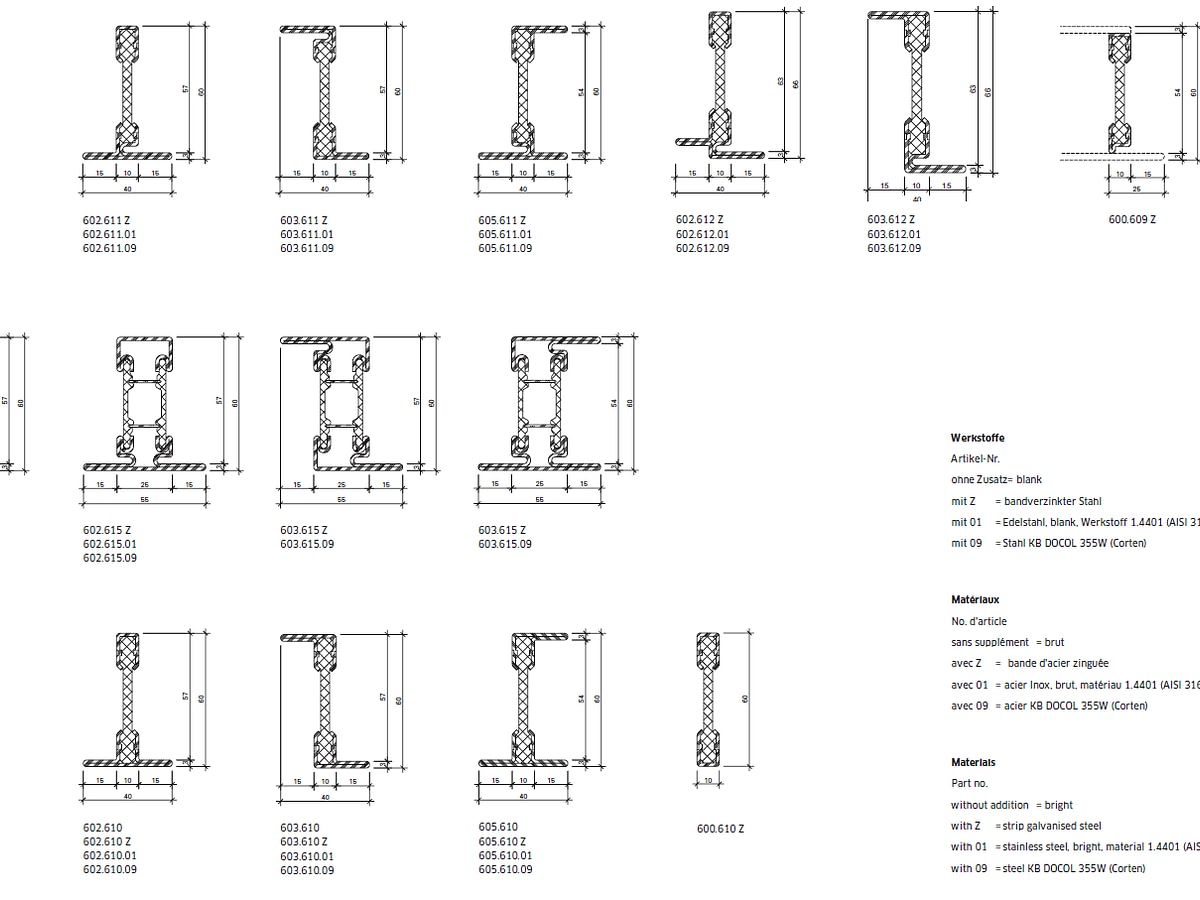

Profile Range
The Gallery
