Janisol Stainless Steel Doors And Windows

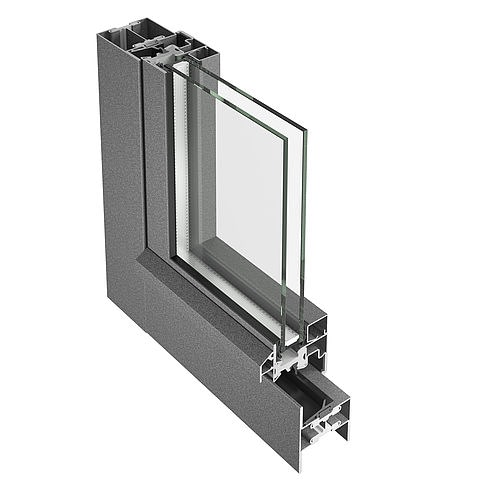

The slender profile face widths on the Janisol windows made of steel or stainless steel provide space for creativity and lend the building a quite special character. Whether it is sash bar variants, arched windows or large-element glazing: the Janisol window system is particularly suitable for use in new buildings as well as for the refurbishment of existing building fabric.

Materials/surface finishes



  • Uncoated or strip-galvanised steel, suitable for powder coating or stove-enamelling
  • Stainless steel 1.4401 (AISI 316) or 1.4301 (AISI 304) (smoothed on request)

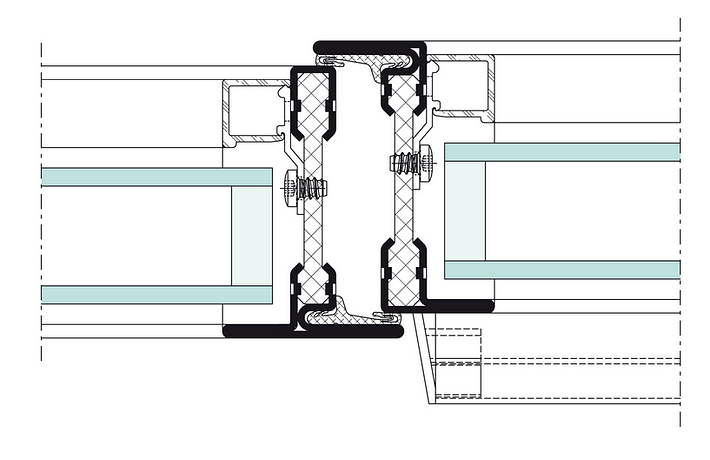

Profile

Features:

Window types / opening options

  • Single and double casement windows, with and without fixed side panels or transom window
  • Side-hung, turn-tilt, bottom-hung, top-hung and double-vent windows
  • Horizontal pivot windows
  • Fixed glazing

Equipment

  • Concealed or surface-mounted fittings
  • Integrated or surface-mounted electric drives

Special technical features

  • Installation depth 60/64 mm
  • Special geometries (semi-circular tops, trapezoidal windows etc.)
  • Structural glazing panel as special solution
  • Weight of casement up to 180 kg

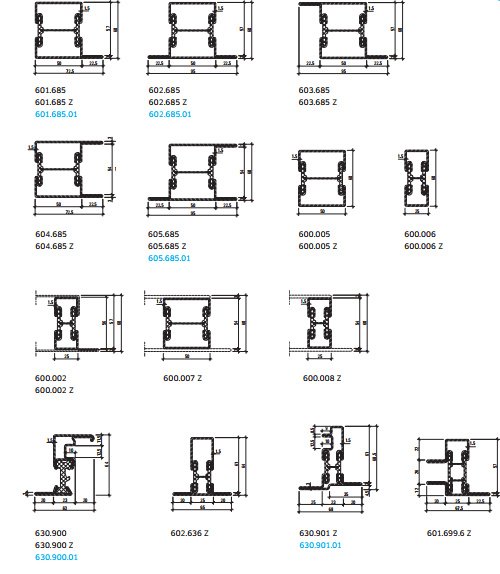

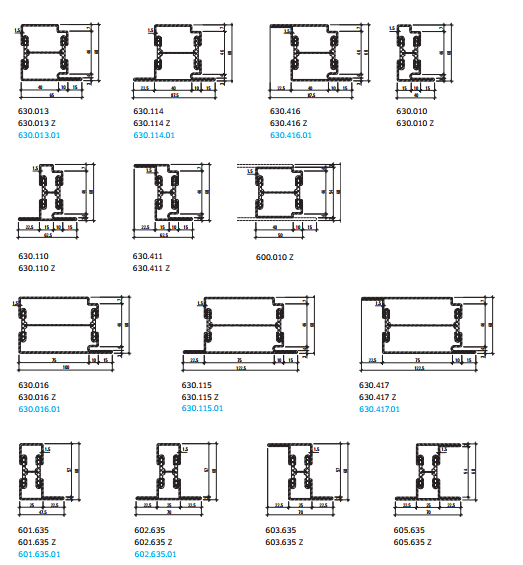

Profile Range

The Gallery
