Jansen Janisol HI Doors & Windows
Janisol HI
french steel doors
Janisol HI french steel doors and windows combine aesthetics with refined technology. Slender frame profiles enhance the architectural styling while the innovative technology ensures the best possible thermal separation.

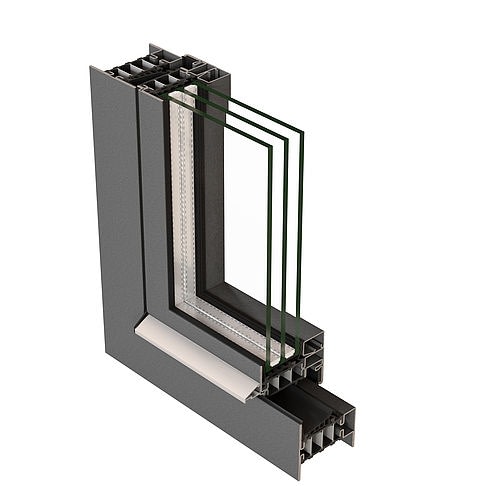

With triple glazing, it is easy to achieve windows with excellent thermal conductivity coefficients (Uw), e.g. 0.69 W/m2K for fixed lights and 0.8 W/m2K for opening elements. Thanks to high-tech thermal break spacer bars made of glass-fibre reinforced plastic, the new window system also benefits from excellent structural values and achieves top values in system tests (air/water/wind).
The Janisol HI window was the first steel window that has been certified according to Minergie.

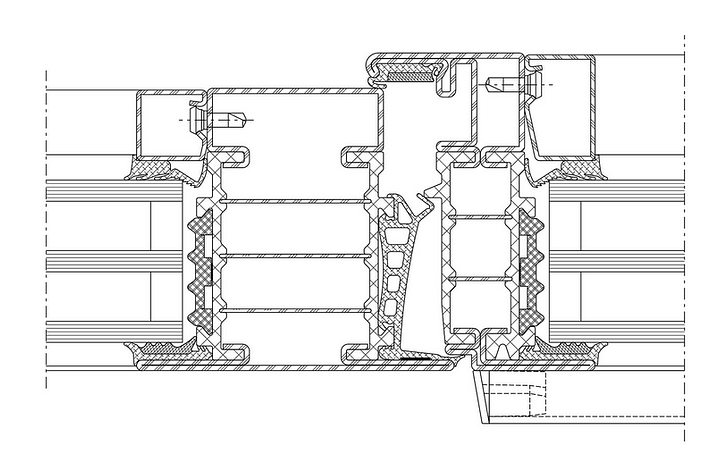

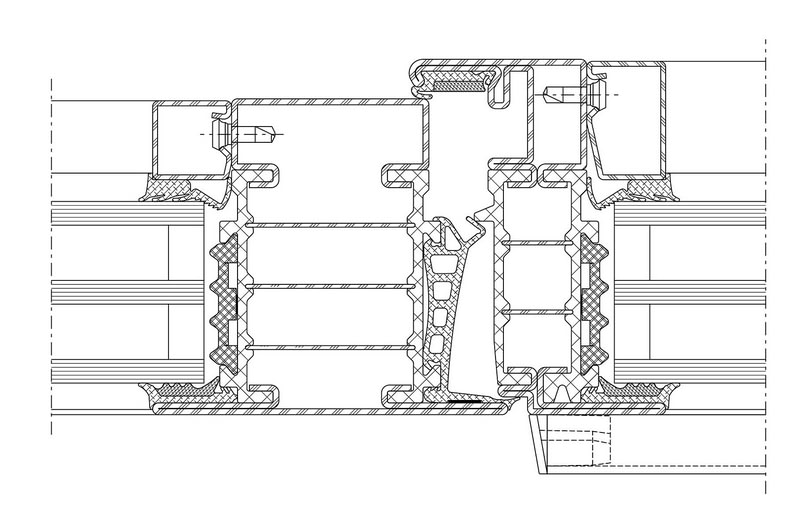

Profile
Features:
Window types / opening options
- Single and double casement windows, with and without fixed side panels or transom window
- Side-hung, turn-tilt, bottom-hung and top-hung windows
- Fixed glazing
Equipment
- Concealed (180 kg) or surface-mounted (150 kg) fittings
- Integrated or surface-mounted electric drives
Special technical features
- Depth of casement 90 mm, fixed glazing 80 mm
- Infill elements 67/57 mm (triple glazing)
- Casement sizes up to 2.8 m high
- Very good structural values, narrow face widths
- Special geometry (Studio window etc.)
- Weight of casements up to 180 kg

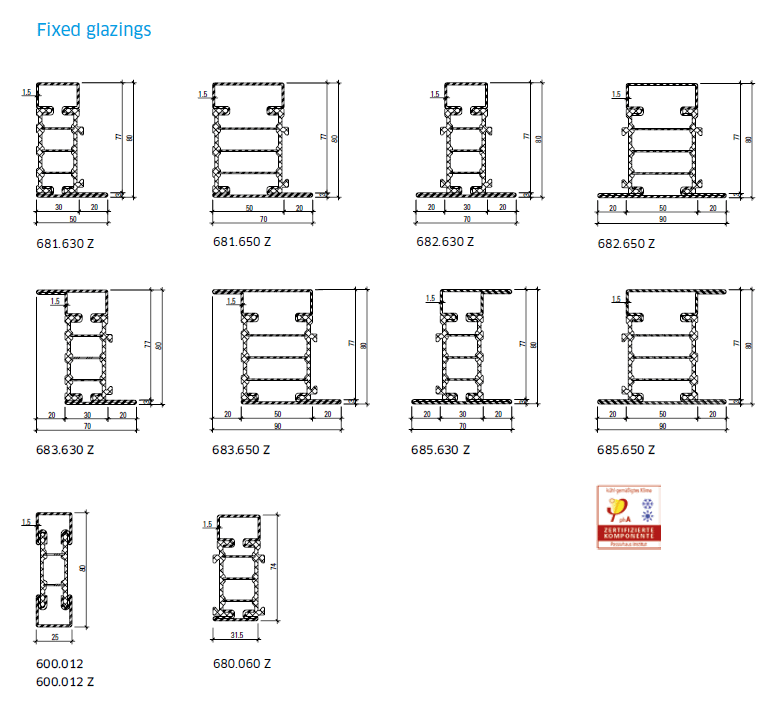

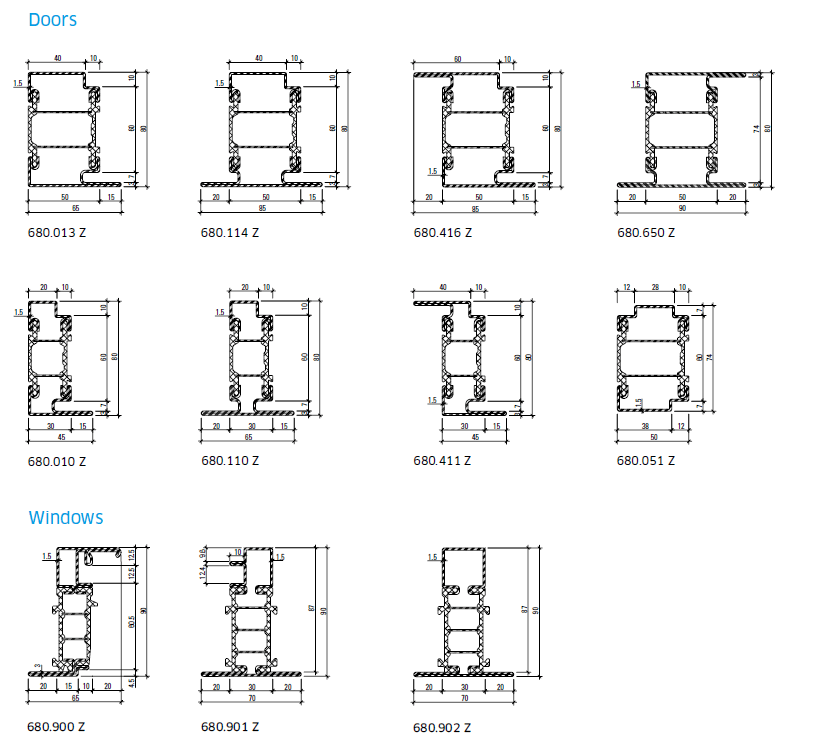

Profile Range
Doors
windows
The Gallery
